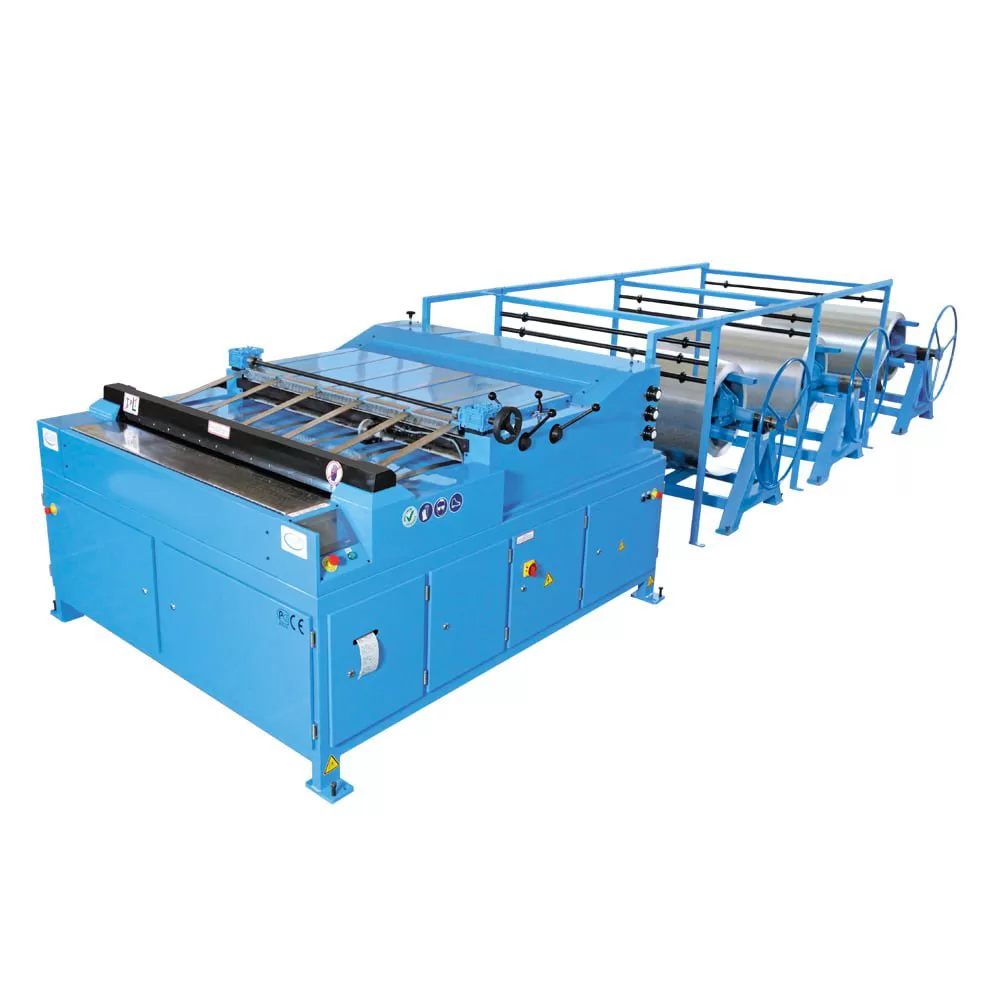

Square Duct Machine
The square duct machine is designed to produce square and rectangular section ducts by bending and cutting coil sheets to specified dimensions.
The square duct machine offers the possibility to produce ducts in a quality, standard, and serial manner. It increases efficiency by minimizing production losses compared to older systems.

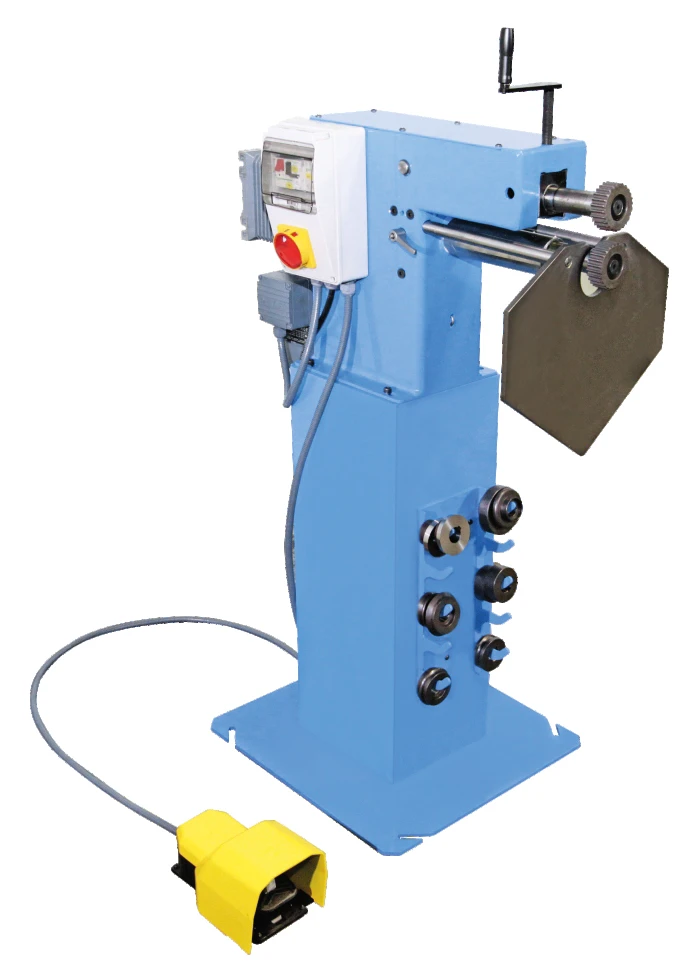

Swaging Machine
The beading machine is a versatile machine designed to shape the edges of air ducts and fittings. The beading machine is equipped with multiple sets of rollers to create various forms such as beading and other shapes. The beading machine comes in two options: automatic and manual. The automatic beading machine can be easily operated automatically thanks to its user-friendly touch screen. It is very efficient in terms of time and labor, especially in mass production facilities. The manual beading machine is also powered by an electric motor, and other adjustments are made manually using a handwheel.

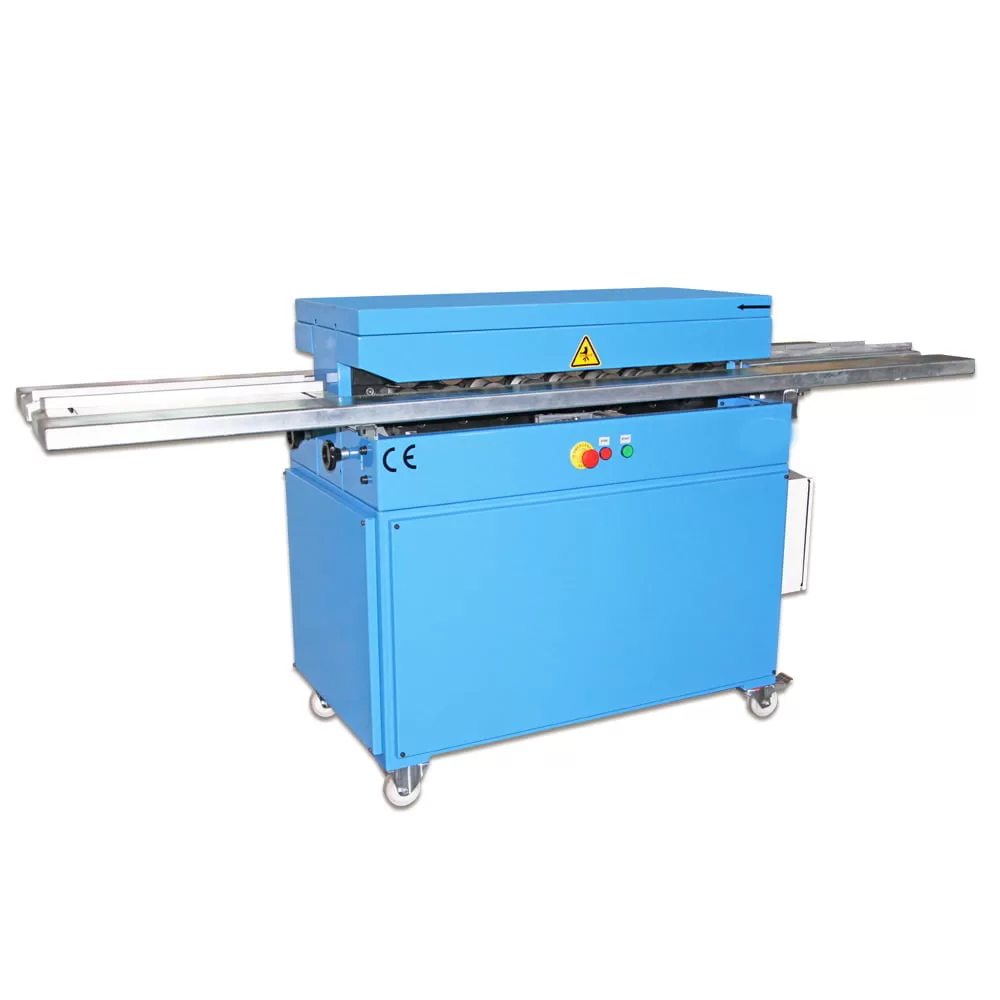

Seaming Machine
The seaming machine shapes the edge of the sheet metal to prepare two pieces for joining fittings.
The machine has 2 roller sets. The form rollers on the machine can be changed according to the duct joining shape. With the adjustable roller group, pre-bending can be done at the desired angle.
Standard seam types on the machine:
Pitsburgh Seam
Snaplock Seam
Drive Cleat Seam
S & Drive S Cleat Seam
Longitudinal Seam
Single and double Standing Seam
Pattern Machine
The pattern machine is designed to enhance the surface strength required in ventilation ducts and to create the desired pattern appearance. It is easy and fast to use. It is fixed to an ergonomic structure. Z or Trapezoid patterns can be easily made on workpieces cut in different shapes with this machine.

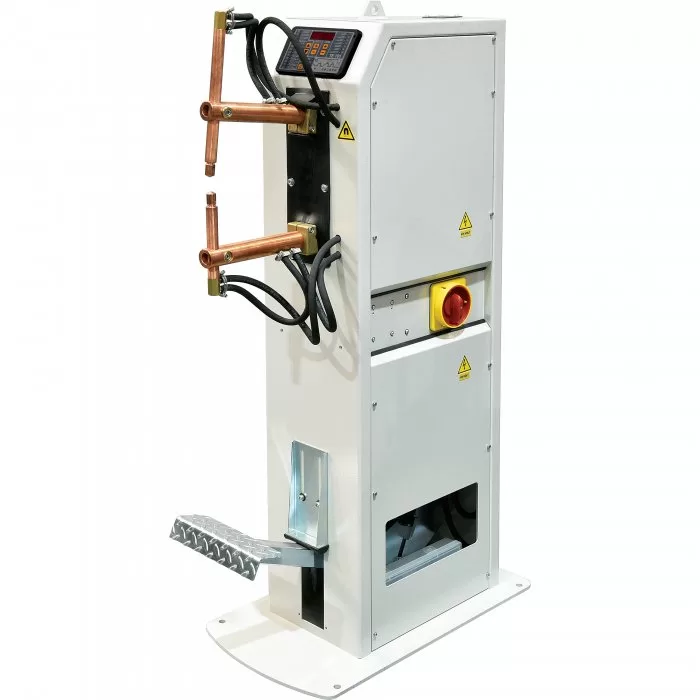

Spot Welder
Features
- Arms adjustable in length allowing a better working flexibility
- Chrome-copper electrode-holders for long life and heavy duty service, designed for straight and angled fitting
- Adjustable electrode stroke
- Epoxy resin coated transformer
- Water-cooled transformer, arms and electrodes
- Microprocessor control unit TECNA TE101
- Adjustable electrode force; a microswitch starts the welding cycle when the desired pre-set value is reached
- The foot pedal is adjustable in length

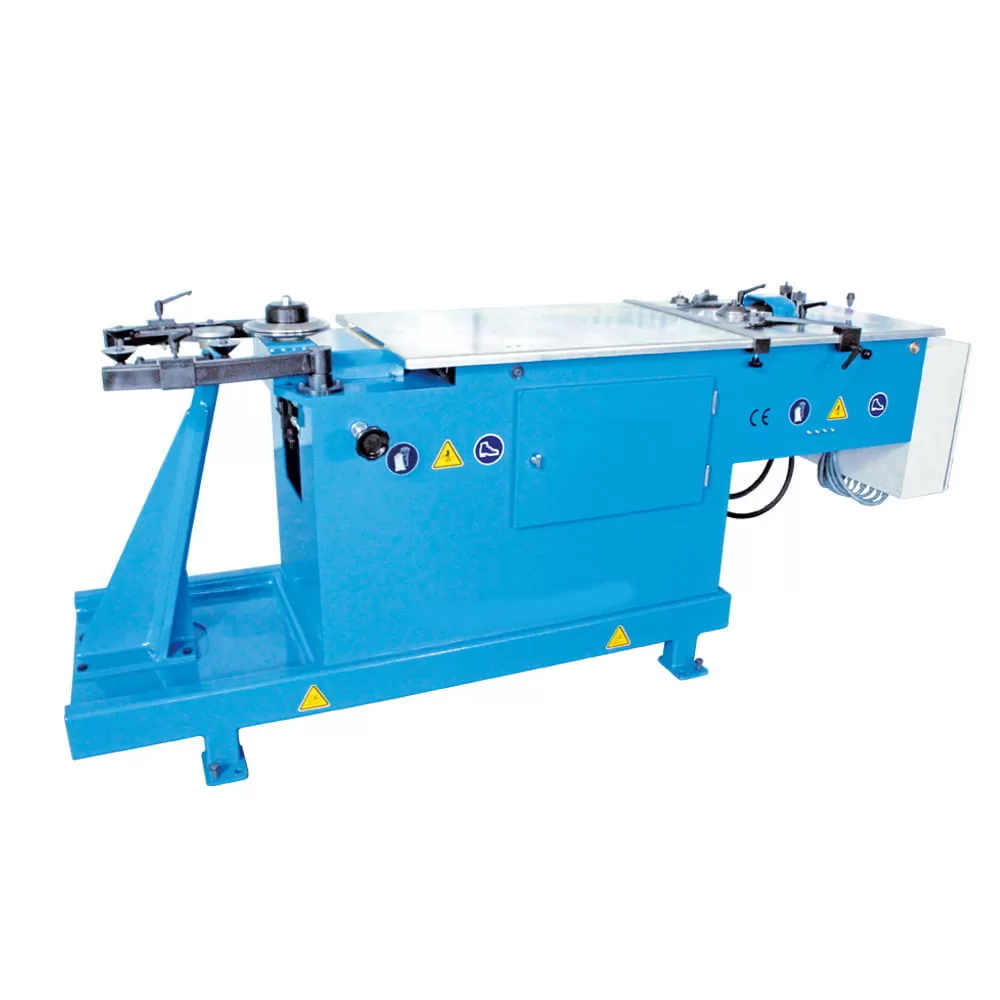

Elbow Maker
It is a machine that joins round cross-section segments obtained by cutting with a plasma cutting machine. Makina iki istasyondan oluşmaktadır. In the first station, male and female flange locations are opened on the segments, and in the second station, assembly and closing operations are performed. This machine can process up to 1.2mm thickness thanks to its powerful hydromotors. It is used in the production of elbows, reductions, and termination elements with thicknesses of 0.5-1.2 mm. The obtained round section fittings will be standard, high-quality, and leak-proof. Two elements can operate on the machine simultaneously. The transition time from one diameter to another is short. Thus, 80% savings in time and labor are achieved.
*It consists of two sections: Preparation Unit and Closing Unit.

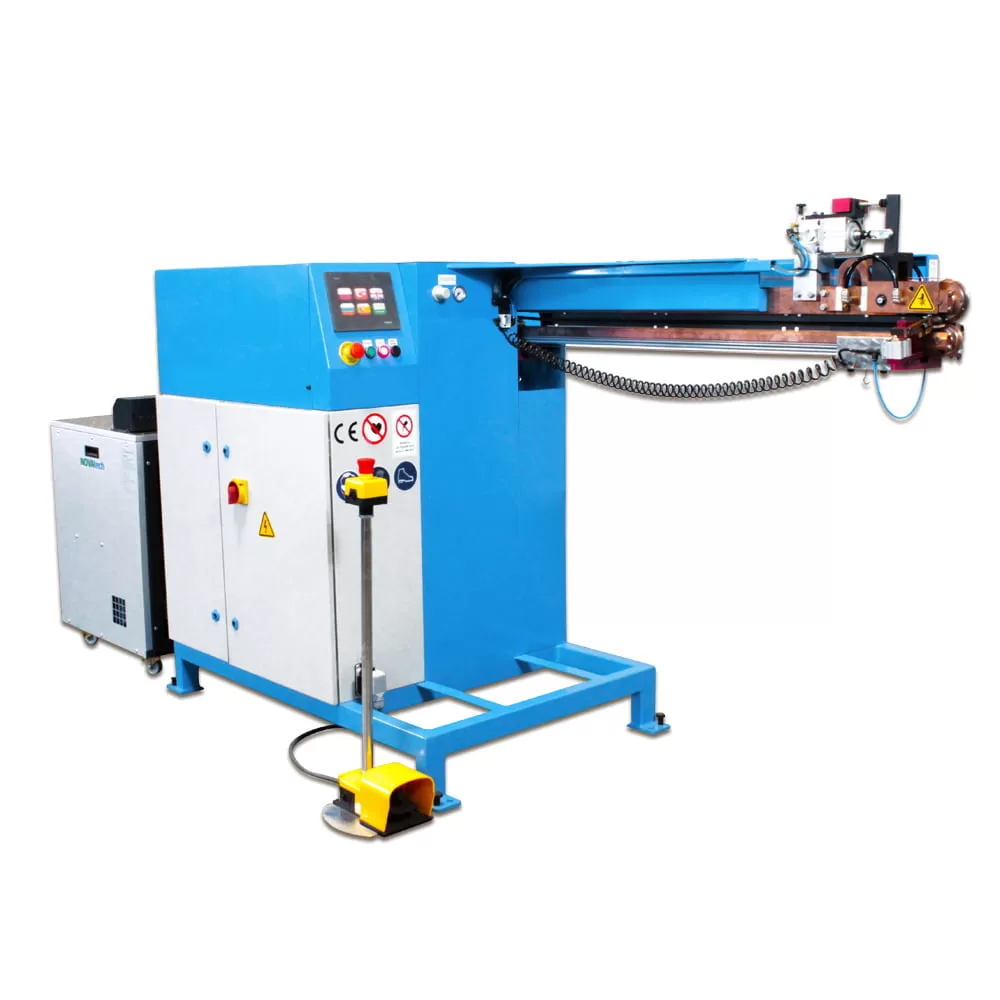

High Frequency Stitch Welder
It is a machine used to combine your round and flat sheets in the same form without burning them, ensuring high quality. The machine has a PLC touch screen. The machine is fully automatic and easy to use. This prevents operator errors. It saves you time with less labor. The machine has both pulsed stitching (galvanized sheet) and continuous stitching (stainless steel) features. The economic advantages of the machine compared to similar ones are:
* The copper wire in the machine is reused, saving on copper wire.
* Savings on sheet metal due to low wire stitch allowance.
* Energy savings due to the medium frequency transformer used in the machine. (PATENTED)
* Time savings with the automatic sheet height detection feature.

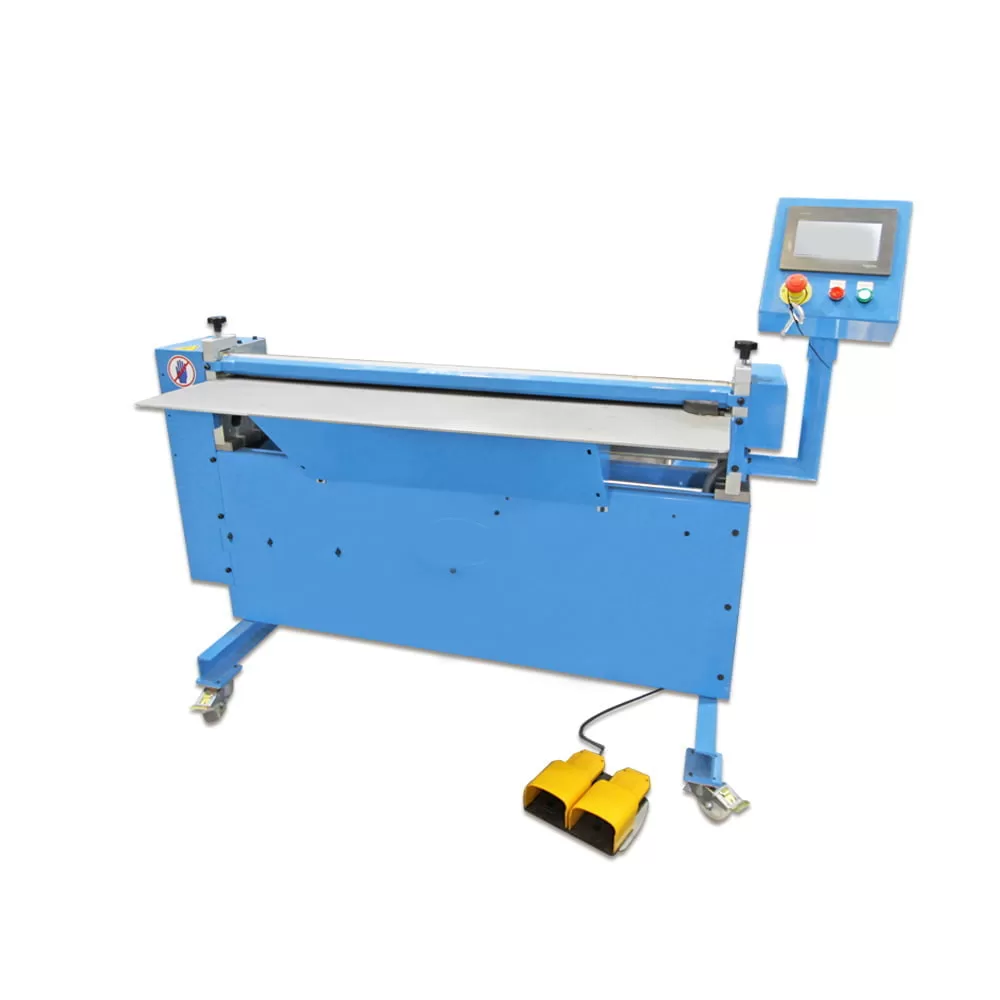

Oval Machine
